Reflective Safety Tapes
TECHENICAL DATA SHEET(TDS)

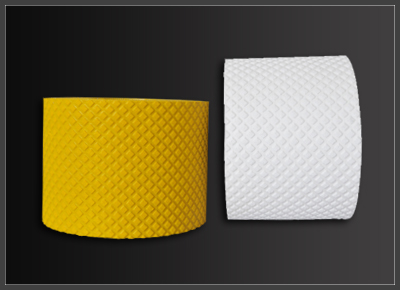

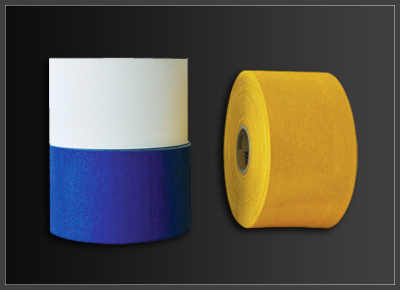

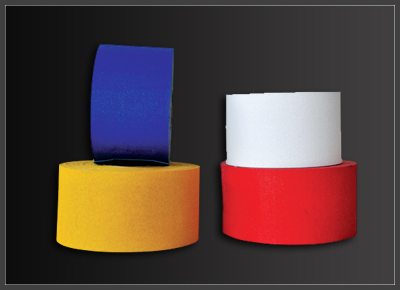

Description: LSKB7000 white and yellow pavement marking tape is a high performance durable pavement marking tape which also provides extended reflective performance not achievable from traditional markings. It is pre-made with synthetic rubber. This tape uses standard 1.5 index beads and 1.9 index beads in a polyurethane topcoat that helps get high retroreflectivity. Reinforcing net within the adhesive layer minimizes shear and tearing in the heavy- traffic environment. It is available in white and yellow, in a variety of roll widths and as words and symbols.
Applications: The extended reflective performance tapes can be used as an inlay or overlay on new asphalt or concrete surface where high levels of reflectivity are required to ensure the safety of the motoring public, and traffic is generally free rolling. White (W) and Yellow (Y) materials are intended for use as lane lines, edge lines, and transverse markings on asphalt and concrete surfaces. Features: High retro-reflectivity all day long ; anti-skid ; high tensile ; strong weather resistance ; easy application; Pre-cut symbols and legends—standard and custom.
Property:
Items | Values | Units | Test methods | |
color | LSKB7001/W | LSKB7002/Y | --- | --- |
Overall Thickness | 75Mils | 75Mils | mm | ASTM-D-4325 |
Retroreflectivity | 600 | 500 | mcd·m-2lx-1 | ASTM-D-4061 |
Adhesion | 20 | 20 | N/25mm | ASTM-D-1000 |
Skid Resistance | 45 | 45 | BPN | ASTM-E-303 |
Performance Life
The performance life of pavement markings will depend on the following:
l Traffic conditions; Snow removal practices; Pavement surfaces; Application techniques.
It is recommended that each customer thoroughly evaluate PLYON Pavement Marking Tapes under the conditions in the specified location. While experience has shown that when properly applied, these materials are highly effective traffic control devices, PLYON Technologies makes no generalized performance claims.
Standard Dimension :
● Standard length: 33m , 50m
● Standard width: 10cm, 15cm, 20cm, 40cm, 45cm; or according to customer’s requirements.
● available color: white, yellow
Application Methods: Inlay and overlay; Coated with P120 contact primer. The quantity can be 1kg per every 3-5m²of road tape on new roads. Actual amount depends on the situation of roads.
Shelf life: 24 months in the first package under the condition of 23℃×65%RH.
Important notice: The information, data and other statements are based on our testing results, the user should determine the suitability of the product for its intended use
